| ชื่อแบรนด์: | DCEC engine |
| เลขรุ่น: | MB-50 |
| MOQ: | 1 ชิ้น |
| ราคา: | Price:Negotiable |
| เงื่อนไขการจ่ายเงิน: | Western Union, T/T, D/P, L/C |
| ความสามารถในการจําหน่าย: | 200 ชิ้น/เดือน |

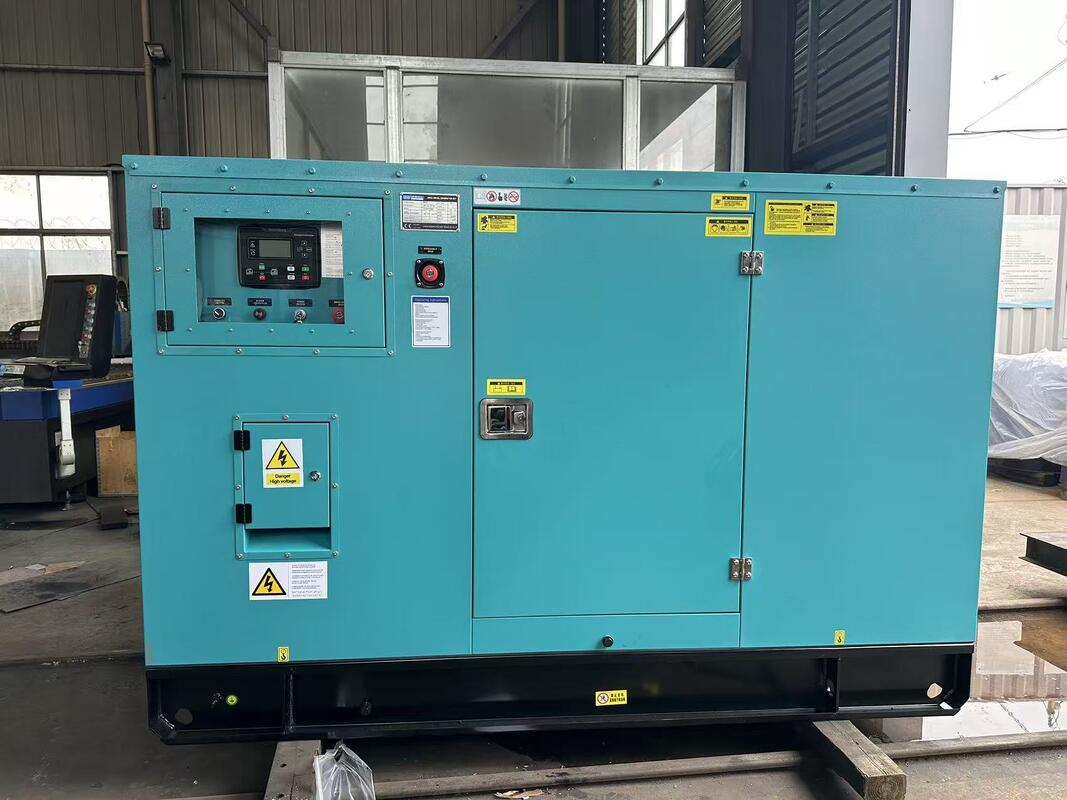

DCEC 4BTA3. 9-G2 diesel generator sets features:
(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.
Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.
|
Genset |
|
|
Model |
MB-40 |
|
Output Power |
40KW/50KVA |
|
Power Factor |
COSΦ=0.8( lagging) |
|
Maximum Output Current |
72A |
|
Silent type Weight |
1150kg (Net) |
|
Silent type Dimensions |
2300*950*1530mm |
|
Voltage |
400/230V |
|
Frequency |
50Hz |
|
Diesel Engine |
|
|
Manufacturer |
DCEC Diesel Engine |
|
Model |
4BTA3. 9-G2 |
|
Rotate Speed |
1500RPM |
|
Power |
50KW/55KW |
|
Fuel Consumption |
≤ 213g/kw.h |
|
Cylinder/Stroke |
102*120 mm |
|
Compression Ratio |
17.3:1 |
|
Displacement |
3.9L |
|
Configuration |
4-cylinder in-line, four-stroke, water-to-air cooling |
|
Cooling Mode |
Liquid Cooled |
|
Speed Control System |
Electronic |
|
Starting Mode |
24V DC |
|
Filter System |
Dry air filter, fuel filter, oil filter |
|
Alternator |
|
|
Manufacturer |
Changsha Mingbang Intelligent Technology Co.Ltd |
|
Model |
MBC22B |
|
Voltage Control Mode |
AVR (automatic voltage regulation) |
|
Voltage Regulation |
±1% |
|
Rated Voltage/Frequency/Power Factors |
400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire |
|
Steady State Frequency |
Better than 5% |
|
No-load Voltage Adjust Range |
≥95% - 105% |
|
Insulation Class/Protection Class |
H / IP22 |
|
Excitation Type |
Brushless |
Our factory
Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.
Our factory has CCEC, DCEC, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.
New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set
More details for diesel generator sets ,please contact us any time
Your further inquiry will be welcome!!
